Curtis PMC Model 1505 Speed Controller

CURTIS PMC MODEL

VOLTAGE (VOLTS)

1 MIN. RATING (AMPS)

CONTINUOUS RATING (AMPS)

TYPICAL VOLTAGE DROP AT 20A (VOLTS)

UNDER VOLTAGE (VOLTS)

1505

24

80

20

. 40

18

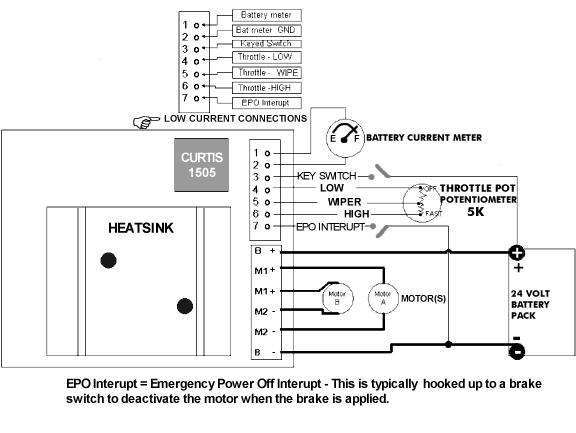

- Controls the speed of one or two electric motors.
- Requires a minimum of 18 Volts DC to operate.
- Requires a 5k Ohm throttle or potentiometer.
- Complete all connections prior to hooking up the battery pack.
- The key switch circuit must be "on" for controller to operate.
- The EPO circuit is optional. If installed the EPO circuit must be "off" for the controller to operate.
