Schwinn Bicycle Parts > Schwinn AL-1020 Electric Bicycle Parts

Schwinn® AL-1020 Electric Bicycle Parts

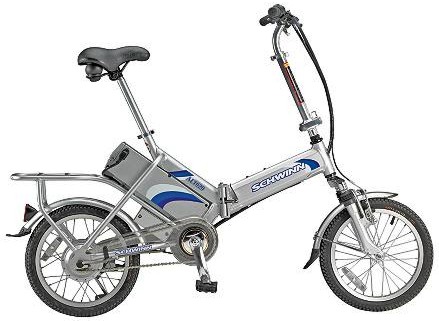

Schwinn AL-1020 Electric Bicycle

Schwinn AL-1020 Owners Manual

Schwinn AL-1020 Wiring Diagram



Battery Charger for Schwinn® AL-1020 Electric Bicycle
Battery charger for the Schwinn® AL-1020 electric bike.
Item # CHR-C24V1.5AVIA
For versions without round 3-prong battery charger port located on the battery pack.
$49.95


Battery Charger for Schwinn® AL-1020 Electric Bicycle
Battery charger for the Schwinn® AL-1020 electric bike.
Item # CHR-C24V1.5AXLR
For versions with round 3-prong battery charger port located on the battery pack. For versions without round 3-pin battery charger port the battery charger adaptor item # CTE 24373 sold below is required to use this charger.
$44.95


Quick-Charge Battery Charger for Schwinn® AL-1020 Electric Bicycle
Quick-Charge fast rate battery charger for the Schwinn® AL-1020 electric bike. Recharges the battery pack in less than half the time that it takes the standard battery charger.
Item # CHR-C24V4AXLR
For versions with round 3-prong battery charger port located on the battery pack. For versions without round 3-pin battery charger port the battery charger adaptor item # CTE 24373 sold below is required to use this charger.
$74.95


Battery Charger Adaptor for Schwinn® AL-1020 Electric Bicycle
Battery charger adaptor for the Schwinn® AL-1020 folding electric bike. Converts round 3-prong XLR plug into a 3-port VIA plug.
Item # CTE-24373
$14.95


Battery Pack for Schwinn® AL-1020 Electric Bicycle
Battery pack with silver plastic case for the Schwinn® AL-1020 electric bike. This battery pack has a round 3-port XLR battery charger port located on it so it can be recharged with a battery charger that has either a VIA plug or an XLR plug.
Item # CTE-24382
$159.95


Battery Pack Wiring Harness for Schwinn® AL-1020 Electric Bicycle
Wiring harness for the Schwinn® AL-1020 electric bicycle battery pack. For battery pack versions with internal fuse.
Item # CNX-BA071B6

$29.95


Battery Set for Schwinn® AL-1020 Electric Bicycle
Replacement battery set for the Schwinn® AL1020 folding electric bicycle. Includes 12 month battery replacement warranty.

Warranty Details
Item # BAT-12V12AX2

$79.90



Battery Set for Schwinn® AL-1020 Electric Bicycle (Extended Range)
Set of two 12 Volt 15Ah batteries for the Schwinn® AL1020 folding electric bicycle. These 15Ah batteries provide 25% more mileage range than the 12Ah batteries sold above. Includes 12 month battery replacement warranty.

Warranty Details
Item # BAT-12V15AHX2

$89.90





Throttle for Schwinn® AL-1020 Electric Bicycle
Twist throttle with 5 wires and 2 connectors for the Schwinn® AL-1020 folding electric bike.
Item # THR-98
$21.95




Controller for Schwinn® AL-1020 Electric Bicycle
Speed controller module for the Schwinn® AL-1020 folding electric bike.
Item # CTE-24501
$69.95


Power Switch for Schwinn® AL-1020 Electric Bicycle
On/Off power switch for the Schwinn® AL1020 folding electric bicycle.
Item # SWT-156
$5.95


Power Switch for Schwinn® AL-1020 Electric Bicycle
On/Off power switch for the Schwinn® AL1020 folding electric bicycle.
Item # SWT-160
$5.95


30 Amp Fuse for Schwinn® AL-1020 Electric Bicycle
Fuse for the Schwinn® AL1020 folding electric bicycle.
Item # FUS-ATO30
$.95


Tire for Schwinn® AL-1020 Electric Bicycle
Tire for front or rear wheel of the Schwinn® AL1020 folding electric bicycle. Maximum recommended inflation pressure 40 PSI.
Item # TIR-16X1.75
$12.95


Tire for Schwinn® AL-1020 Electric Bicycle
Tire for front or rear wheel of the Schwinn® AL1020 folding electric bicycle. Maximum recommended inflation pressure 35 PSI.
Item # TIR-16X1.75R
$14.95


Tube for Schwinn® AL-1020 Electric Bicycle
Inner tube for front or rear wheel of the Schwinn® AL1020 folding electric bicycle.
Item # TUB-16x1.75/2.125
$4.95


Brake Cable for Schwinn® AL-1020 Electric Bicycle
Brake cable for the Schwinn® AL1020 folding electric bicycle.
Item # CBL-910
$4.95

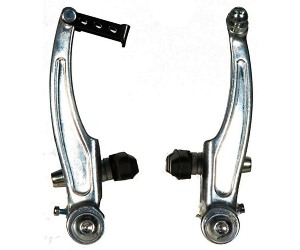

V-Brake for Schwinn® AL-1020 Electric Bicycle
V-Brake for front or rear wheel of the Schwinn® AL1020 folding electric bicycle.
Item # BRK-218
$21.95


Pedals for Schwinn® AL-1020 Electric Bicycle
Pedal set with built-in reflectors for the Schwinn® AL1020 folding electric bicycle.
Item # CTE-24412
$12.95

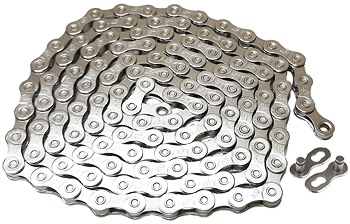

Pedal Chain for Schwinn® AL-1020 Electric Bicycle
Crankset sprocket to rear wheel cluster chain for the Schwinn® AL1020 folding electric bicycle.
Item # CTE-24368
$12.95


Large Size Seat with Dual Rear Springs for Schwinn® AL-1020 Electric Bicycle
Extra-large and extra-comfortable electric scooter and bike seat with built-in dual rear spring suspension. Thick foam rubber padding. Heavy duty steel rail construction under the seat. Includes mounting hardware. Seat measures 10" wide x 10-1/2" long.
Item # SET-251
$29.95


Seat with Dual Rear Springs for Schwinn® AL-1020 Electric Bicycle
Electric scooter and bike seat. Dual rear spring suspension. Heavy duty steel rail construction under the seat. Includes mounting hardware.
Item # SET-258
$19.95

Standard size electric scooter and bike seat.

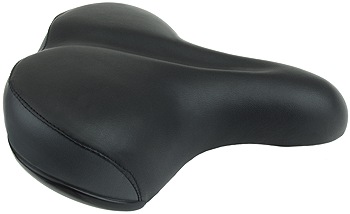

Seat for Schwinn® AL-1020 Electric Bicycle
Electric scooter and bike seat. Lightweight design with no springs. Plush foam padding with textured synthetic cover.  Heavy duty steel rail construction under the seat. Includes mounting hardware.
Item # SET-260
$19.95

Schwinn® AL-1020 Electric Bicycle Accessories



53 LED Headlight for Schwinn® AL-1020 Electric Bicycle
Bright 53 LED headlight for the Schwinn® AL-1020 electric bicycle. Top mounted push button switch activates three different power modes: low, medium and high. High power mode turns on all 53 LED's at once. This headlight lights up the road very well at night compared to most other LED headlights. Requires 3 AA cell batteries. (batteries not included)
Item # LIT-53LED
$11.95


5 LED Taillight for Schwinn® AL-1020 Electric Bicycle
High output 5 LED taillight for the Schwinn® AL-1020 electric bicycle. Push button switch on back side of taillight activates steady light or blinking light mode. Easy to install design. Mounts onto seat post. Has a belt clip so it can also be worn. Requires 2 AAA cell batteries. (batteries not included)
Item # LIT-600
$4.95


Front White Safety Reflector for Schwinn® AL-1020 Electric Bicycle
White safety reflector for the Schwinn® AL-1020 electric bicycle. Easy to install design.
Item # REF-150
$4.95


Rear Reflector for Schwinn® AL-1020 Electric Bicycle
Rear red safety reflector for the Schwinn® AL-1020 electric bicycle. Mounts onto seat post.
Item # REF-155
$4.95


Safety Warning Bell for Schwinn® Al-1020 Electric Bicycle
Polished aluminum alloy bell for the Schwinn® AL-1020 electric bike. Pleasant sounding and attention grabbing chime bell sound lets other know you are on the road or trail in a friendly yet effective way. Easy to install design.
Item # BEL-300

$2.95



Safety Warning Bell With Compass for Schwinn® AL-1020 Electric Bicycle
Compass bell for the Schwinn® AL-1020 electric bicycle. Pleasant sounding and attention grabbing chime bell sound. Easy to view real magnetic compass. Easy to install design.
Item # BEL-360

$3.95



2-1/2" Valve Stem Extender for Schwinn® AL-1020 Electric Bicycle
2-1/2" long chrome-plated brass valve stem extender with cap. For filling hard to reach valve stems.
Item # VXT-160
$2.79


7-1/4" Flexible Valve Stem Extender for Schwinn® AL-1020 Electric Bicycle
7-1/4" long flexible valve stem extender with cap. For filling hard to fill valve stems. Reinforced rubber hose with solid brass hardware.
Item # VXT-714
$7.95


Green Slide® Chain Lube for Schwinn® AL-1020 Electric Bicycle
Green Slide® safe and biodegradable chain lube. The perfect lube for electric scooters and bikes. Made from highly modified tree and plant oils with all natural cling and anti-oxidation additives.
4 fluid ounce / 120 ml bottle. More Information
Item # GSL-4OZ

$4.95



Slime® Inner Tube Sealant for Schwinn® AL-1020 Electric Bicycle
Instantly seals punctures in the tread area up to 1/8". Remains liquid, evenly coating the inside of the tube. Non-flammable, non-toxic, water soluble, easy to use. For the Schwinn® AL-1020 electric bicycle use 1/2 bottle of sealant per tire. 8 fluid ounce / 237mL bottle.
Item # TIR-SL8
$7.95
