MOT-24250G, MOT-36350G, MOT-24450G, MOT-36250G, MOT-36450G, MOT-CTE24450P, and MOT-CTE24450GX470
Motor Sprockets for #25 Chain
19 Tooth 11mm Bore Sprocket for #25 Chain 1-5/8" OD, 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide hub. For
MY1016Z and MY1018Z gear motors.
Made from hardened steel with a black oxide finish. Item # SPR-2519G1
$14.95
Motor Sprockets for 8mm Chain
13 Tooth 11mm Bore Sprocket for T8F (8mm) Chain 36mm (1-7/16") OD, 11mm ID, 4mm wide x 2mm deep keyway.
15.1mm wide hub. Made from hardened steel with a black oxide finish.
Item # SPR-813R1
$10.95
25 Tooth 11mm Bore Sprocket for 8mm Chain Motor sprocket for MY1016Z and MY1018Z gear motors. 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide hub. For
8mm chain.
Item # SPR-825
$14.95
Motor Sprockets for 1/2" x 1/8" (#410) Chain
9 Tooth 11mm Bore Sprocket for 1/2" x 1/8" Bicycle Chain
Motor sprocket with key pin for MY1016Z, MY1016Z3, and MY1018Z gear motors. 1-5/8" (41mm) OD, 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide
hub. For 1/2" x 1/8" (#410) bicycle chain. Fits Currie® Electro Drive electric bicycle kits plus eZip® and IZIP® electric bicycles with
gear motors. Item # SPR-4109R1
$14.95
11 Tooth 11mm Bore Sprocket for 1/2" x 1/8" Bicycle Chain Motor sprocket for MY1016Z, MY1016Z3, and MY1018Z gear motors. 1-15/16" (50mm) OD, 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide hub.
For 1/2" x 1/8" (#410) bicycle chain. Item # SPR-4101111
$15.95
12 Tooth Freewheel Sprocket with 11mm Bore for 1/2" x 1/8" Bicycle Chain Motor sprocket for MY1016Z, MY1016Z3, and MY1018Z gear motors. Motor shaft must rotate
clockwise to use this sprocket. 1-15/16" (50mm) OD, 11mm ID, 4mm wide x 2mm deep
keyway. For 1/2" x 1/8" (#410) bicycle chain. Item # SPR-4101211FW
$21.95
13 Tooth 11mm Bore Sprocket for 1/2" x 1/8" Bicycle Chain Motor sprocket for MY1016Z, MY1016Z3, and MY1018Z gear motors. 2-3/8" (57mm) OD, 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide hub. For
1/2" x 1/8" (#410) bicycle chain. Item # SPR-4101311
$16.95

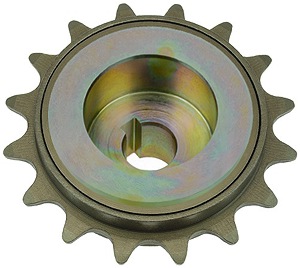

16 Tooth Freewheel Sprocket with 11mm Bore Adapter for #410 (1/2"x1/8") Bicycle Chain Motor sprocket for MY1016Z, MY1016Z3, and MY1018Z gear motors. Right hand thread 16
tooth freewheel with 1.375 x 24 TPI threads. Motor shaft must rotate clockwise to use this sprocket.
Includes freewheel sprocket and yellow zinc plated steel adapter.
Freewheel is threaded onto the adapter and is replaceable. 3-1/16" (57mm) OD,
11mm ID, 4mm wide x 2mm deep keyway. Works with 1/2" x 1/8" (#410) bicycle chain.
Item # SPR-4101611FW
$32.95
Motor Sprockets for #40, #41, and #420 Chain
9 Tooth 11mm Bore Sprocket for #40, #41, and #420 Chain Motor sprocket with key pin for MY1016Z, MY1016Z3, and MY1018Z gear motors. 1-5/8" (41mm) OD, 11mm ID, 4mm wide x 2mm deep keyway. 9mm wide hub. For #40, #41, and #420 chain.
Item # SPR-4209R1
4mm x 4mm x 8mm Key Pin for Keyed Motor Shaft Sprockets 4mm x 4mm x 8mm key pin for keyed motor shaft sprockets sold above.
Item # KEY-448
$0.95
Nut with Built-In Lock Washer for Keyed Motor Shaft Sprockets Motor shaft nut for keyed motor shaft sprockets with 4mm wide x 2mm deep
keyways sold above. Item # NUT-8RW
