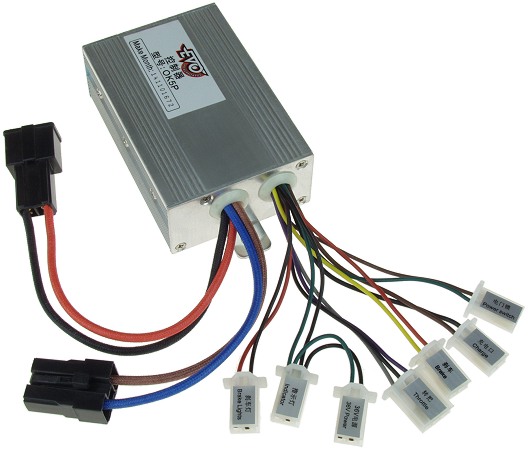

EVO-500CONTROLLER-V2 Installation Wiring |
|
| This EVO 500 controller version does not have a connector for a Sport Mode switch. If the EVO 500 scooter that this controller is being installed on has a Sport Mode switch then its connector will need to be left disconnected from this controller. This controller is always in sports mode so no performance will be lost by not connecting the Sport Mode connector to it. |
|
*Power Connector |
|
| Motor Connector |
 |
| Throttle Connector |
 |
| Key or Power Switch Connector |
 |
| Battery Charger Connector |
 |
| Brake Lever Switch Connector |
 |
| Brake Light Connector |
 |
| 36V
Power Connector and Power Light Connector |
 |
| *The power connector should be the last connection made. |
