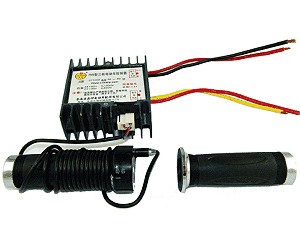

Speed Controller SPD-601000C Installation and Wiring

Rated Voltage  60 Volts DC
Rated For Motors  Up To 1000 Watts
Maximum Current  25 Amps
Conversion Efficiency  95%
Under Voltage Protection  52.5 Volts
Recommended Fuse Size  30 Amps
Dimensions  4" x 4-1/4" x 2" (L x W x H)
Throttle  3 Wire Hall-Effect Throttle (Included)
Under Voltage Battery Protection: When the battery pack falls below a specific Voltage the controller turns the motor off preventing over discharging of the battery pack which extends the battery packs lifespan. (The cutoff value is approximately 52.5 Volts ± 1.0 Volts)

*Power Connector
Red = Positive
Black = Negative

Motor Connection
Red = Positive
Yellow = Negative

Throttle Connector

Mating Connector Item # CNX-52
*The power connector should be the last connection made.
*A power switch or power relay and fuse or circuit breaker protection is required between speed controller and battery pack.
