Sprockets > Freewheel to Axle Adapters

Freewheels to Axle Adapters

Freewheel to Axle Adapters
All of the freewheel to axle adapters and freewheels on this page are 100% compatible and interchangeable with each other.

We have a wide selection of pre-made sprockets with F5 mounting patterns that fit the freewheels on this page.

 We also sell custom-made-sprockets with F5 mounting patterns that fit the freewheels on this page.

Freewheel to Axle
Adapters
Freewheel
Clutches
Freewheel
Tools

Freewheel to Axle Adapters

For Metric Diameter Axles

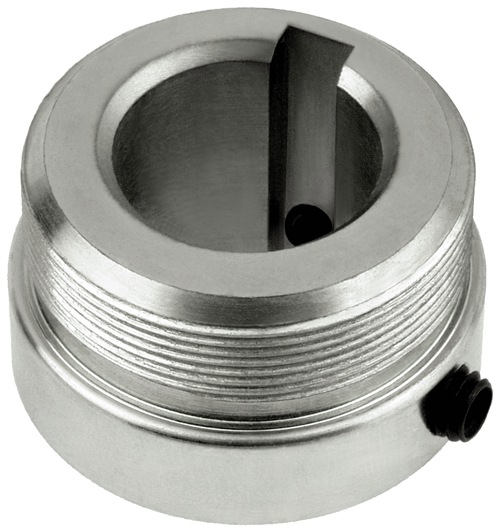

Freewheel to Axle Adapter with Right Hand Threads for 20mm Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 20mm ID, 0.9" wide, 6mm keyway. Includes two set screws, Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER20

$24.95


Freewheel to Axle Adapter with Right Hand Threads for 15mm Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 15mm ID, 0.9" wide, 4mm keyway. Includes two set screws, Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER15

$24.95


4mm x 4mm x 25mm Axle Key
4mm x 4mm x 25mm steel axle key for freewheel to axle adapters with 4mm keyway.
Item # KEY-4425

$0.95


6mm x 6mm x 25mm Axle Key
6mm x 6mm x 25mm steel axle key for freewheel to axle adapters with 6mm keyway.
Item # KEY-6625

$0.95


Set Screw for Freewheel to Axle Adapters
Set screw for the freewheel to axle adapters listed above. Two of these set screws are included with each adapter so this set screw is to use for a spare or to replace a lost set screw.
Item # HDW-2842
$0.25

For Standard Diameter Axles


Freewheel to Axle Adapter with Right Hand Threads for 1" Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 1" ID, 0.9" wide, 1/4" keyway. Includes two set screws. Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER1

$24.95

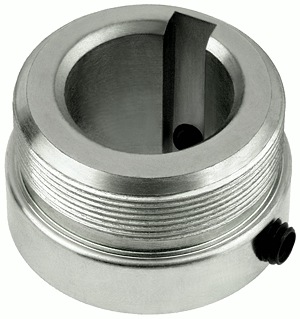

Freewheel to Axle Adapter with Right Hand Threads for 7/8" Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 7/8" ID, 0.9" wide, 3/16" keyway. Includes two set screws. Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER2

$24.95


Freewheel to Axle Adapter with Right Hand Threads for 3/4" Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 3/4" ID, 0.9" wide, 3/16" keyway. Includes two set screws. Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER3

$24.95

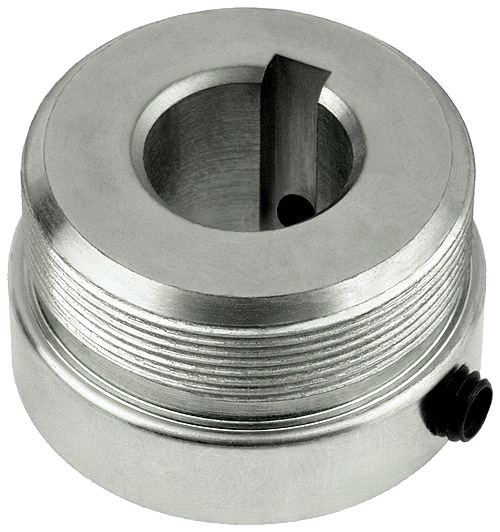

Freewheel to Axle Adapter with Right Hand Threads for 5/8" Axle
Freewheel adapter with 1.375" x 24 TPI right hand (clockwise) threads. 5/8" ID, 0.9" wide, 3/16" keyway. Includes two set screws. Made from zinc plated steel. Compatible with 5-hole freewheel item number FWM-205 listed below.
Item # FWM-ADAPTER8

$24.95


3/16" x 3/16" x 1" Axle Key
3/16" x 3/16" x 1" steel axle key for freewheel to axle adapters with 3/16" keyway.
Item # KEY-316X1

$0.95


1/4" x 1/4" x 1" Axle Key
1/4" x 1/4" x 1" steel axle key for freewheel to axle adapters with 1/4" keyway.
Item # KEY-104X1

$0.95


Set Screw for Freewheel to Axle Adapters
Set screw for the freewheel to axle adapters listed above. Two of these set screws are included with each adapter so this set screw is to use for a spare or to replace a lost set screw.
Item # HDW-2842
$0.25

With Left Hand Threads for Standard Diameter Axles

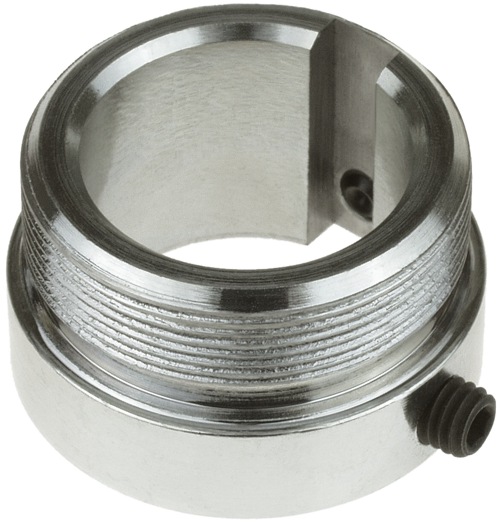

Freewheel to Axle Adapter with Left Hand Threads for 1" Axle
Freewheel adapter with 1.375" x 24 TPI left hand (counterclockwise) threads. 1" ID, 0.9" wide, 1/4" keyway. Includes two set screws. Made from zinc plated steel. This adapter is not compatible with any of the freewheels that we carry.
Item # FWM-ADAPTER12

$29.95


Freewheel to Axle Adapter with Left Hand Threads for 3/4" Axle
Freewheel adapter with 1.375" x 24 TPI left hand (counterclockwise) threads. 3/4" ID, 0.9" wide, 3/16" keyway. Includes two set screws. Made from zinc plated steel. This adapter is not compatible with any of the freewheels that we carry.
Item # FWM-ADAPTER10

$29.95


Freewheel to Axle Adapter with Left Hand Threads for 5/8" Axle
Freewheel adapter with 1.375" x 24 TPI left hand (counterclockwise) threads. 5/8" ID, 0.9" wide, 3/16" keyway. Includes two set screws. Made from zinc plated steel. This adapter is not compatible with any of the freewheels that we carry.
Item # FWM-ADAPTER9

$29.95


3/16" x 3/16" x 1" Axle Key
3/16" x 3/16" x 1" steel axle key for freewheel to axle adapters with 3/16" keyway.
Item # KEY-316X1

$0.95


1/4" x 1/4" x 1" Axle Key
1/4" x 1/4" x 1" steel axle key for freewheel to axle adapters with 1/4" keyway.
Item # KEY-104X1

$0.95


Set Screw for Freewheel to Axle Adapters
Set screw for the freewheel to axle adapters listed above. Two of these set screws are included with each adapter so this set screw is to use for a spare or to replace a lost set screw.
Item # HDW-2842
$0.25

Freewheel Clutches

F5 Sprocket
Mounting Pattern


5-Hole Freewheel with 1.375" x 24 TPI Right Hand Threads (F5 Sprocket Mounting Pattern)
5-hole bicycle freewheel clutch with 1.375" x 24 TPI right hand (clockwise) threads. 2.125" OD sprocket mounting flange, 2.638" bolt circle diameter. Five sprocket mounting holes with M5x0.8 threads. Compatible with all axle adapters listed on this page. 1.375" x 24 TPI (ISO) threads are used on virtually all modern bicycle wheels.
Item # FWM-205

$19.95

F4 Sprocket
Mounting Pattern


4-Hole Freewheel with 1.375" x 24 TPI Right Hand Threads (F4 Sprocket Mounting Pattern)
4-hole bicycle freewheel clutch with 1.375" x 24 TPI right hand (clockwise) threads. 2.125" OD sprocket mounting flange, 2.559" bolt circle diameter. Four 6.2mm ID sprocket mounting holes. Compatible with all axle adapters listed on this page. 1.375" x 24 TPI (ISO) threads are used on virtually all modern bicycle wheels.
Item # FWM-175
$14.95

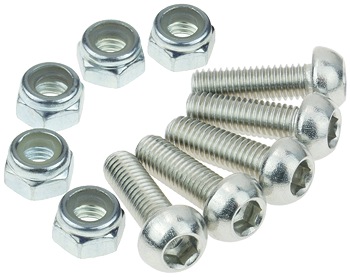

Sprocket Mounting Bolts and Locknuts for 5-Hole Freewheels
Set of five quantity M5x0.8 x 16mm long bolts and M5x0.8 locknuts. Compatible with freewheel item # FWM-205 listed above.
Item # HDW-200

$2.95

Freewheel Tools


Four Notch Freewheel Removal Tool
Freewheel removal tool for both 4-notch and 8-notch freewheels. Works with freewheel clutch item # FWM-175 and FWM-205 listed above. Professional quality tool made from nickel plated forged steel. Can be used to install freewheels however freewheels can be installed by hand and then tightened by the motor the first time that the vehicle is used.
Item # FWM-400
$9.95
