Accessories / Lighting > Taillights

Taillights

Browse for taillights by vehicle make and model.
Fender Mount Taillights Seat Post Mount Taillights Handlebar End Lights
Fender Mount Taillights


Fender Mount Taillight with 3-1/4" x 1-1/4" Rectangular Lens and 24 Volt Bulb
Oval shaped fender mount tail light for electric scooters and bikes. Red lens measures 3-1/4" wide x 1-1/4" high. 24 Volt bulb. 20" long wire leads. Mounts onto rear fender with permanently attached molded-in steel bolt. Used on many dolphin shaped body electric scooters.
Item # LIT-800		 $7.95



Fender Mount Taillight with Oval Red Lens and Black Body
Fender mount taillight with oval-shaped red lens and black plastic body. Dual-filament bulb with 5 Watt tail light and 21 or 10 Watt brake light depending on Voltage. Clear bottom-side license plate illumination window. Available with your choice of 12 Volt, 24 Volt, 48 Volt, or 60 Volt bulb. Lens measures 5-1/4" wide x 2-1/2" high. 12" long electrical cable with 3 wires and 4mm OD male bullet terminals. Threaded mounting posts are 6mm (1/4") OD and have a 50mm (2") center to center spacing. Replacement bulbs sold below. Mating connecter item # CNX-09F sold below.
Wiring Directions
Item # LIT-810-12V

Item # LIT-810-24V

Item # LIT-810-48V

Item # LIT-810-60V

 12V 21/5W

$12.95

24V 21/5W

$12.95

48V 10/5W

$12.95

60V 10/5W

$12.95



Fender Mount Taillight with Oval Red Lens and Chrome-Plated Body
Fender mount taillight with oval-shaped red lens and chrome-plated plastic body. Dual-filament bulb with 5 Watt tail light and 21 or 10 Watt brake light depending on Voltage. Clear bottom-side license plate illumination window. Available with your choice of 12 Volt, 24 Volt, 48 Volt, or 60 Volt bulb. Lens measures 5-1/4" wide x 2-1/2" high. 12" long electrical cable with 3 wires and 4mm OD male bullet terminals. Threaded mounting posts are 6mm (1/4") OD and have a 50mm (2") center to center spacing. Replacement bulbs sold below. Mating connecter item # CNX-09F sold below.
Wiring Directions
Item # LIT-811-12V

Item # LIT-811-24V

Item # LIT-811-48V

Item # LIT-811-60V

 12V 21/5W

$12.95

24V 21/5W

$12.95

48V 10/5W

$12.95

60V 10/5W

$12.95


Fender Mount LED Rear Light Assembly with Brake or Tail Light, Turn Signal Lights, and Parking Light for 36V, 48V and 60V Vehicles
Fender mount LED multiple function electric vehicle rear light assembly. Clear lens measures 7" wide x 2-1/4" high. Works with 36 Volt, 48 Volt and 60 Volt electrical systems. The brake or tail light has three red LEDs, each turn signal light has two amber LEDs, and the parking light has two attention grabbing multi-color flashing LEDs. 44" long electrical cable with 6-terminal connector. Mating connecter item # CNX-54F sold below.
Wiring Directions
Item # LIT-850		 $9.95



LED Taillight Assembly with Running Light, Brake Light, and Turn Signal for 48V Vehicles
Body mount LED multiple function electric vehicle rear light assembly. Red and amber lens measures 5.315" wide x 2.68" high. Rear mounting studs are 4.6" apart from each other. Works with 48 Volt lighting systems. 6" long wires with 4-terminal connector.
Wiring Directions
Item # LIT-874		 $11.95


4mm Female Bullet Terminal
4mm female bullet terminal with green insulation sleeve. Works with taillight item # LIT-810 and CNX-811 sold above.
Item # CNX-09F 		$0.20


6 Terminal 2.8mm Female Connector
Six terminal connector with female housing and 2.8mm male terminals. Works with LED rear light cluster item # LIT-850 sold above.
Item # CNX-54F 		$1.00


10W/5W Bulb for LIT-810 and LIT-811 Taillight
Dual filament 10W/5W electric scooter and bike taillight bulb. Dual contact dual filament bulb. Available in 12 Volt, 48 Volt, and 60 Volt versions. 15mm (approximately 9/16") wide base.
Bulb Dimensions
Item # BLB-12105

Item # BLB-48105

Item # BLB-60105

 12 Volt

$4.95

48 Volt

$4.95

60 Volt

$4.95


21W/5W Bulb for LIT-810 and LIT-811 Taillight
Dual filament 21W/5W electric scooter and bike taillight bulb. Dual contact dual filament bulb. Available in 12 Volt and 24 Volt versions. 15mm (approximately 9/16") wide base.
Bulb Dimensions
Item # BLB-12215

Item # BLB-24215

 12 Volt

$4.95

24 Volt

$4.95
Seat Post Mount Taillights

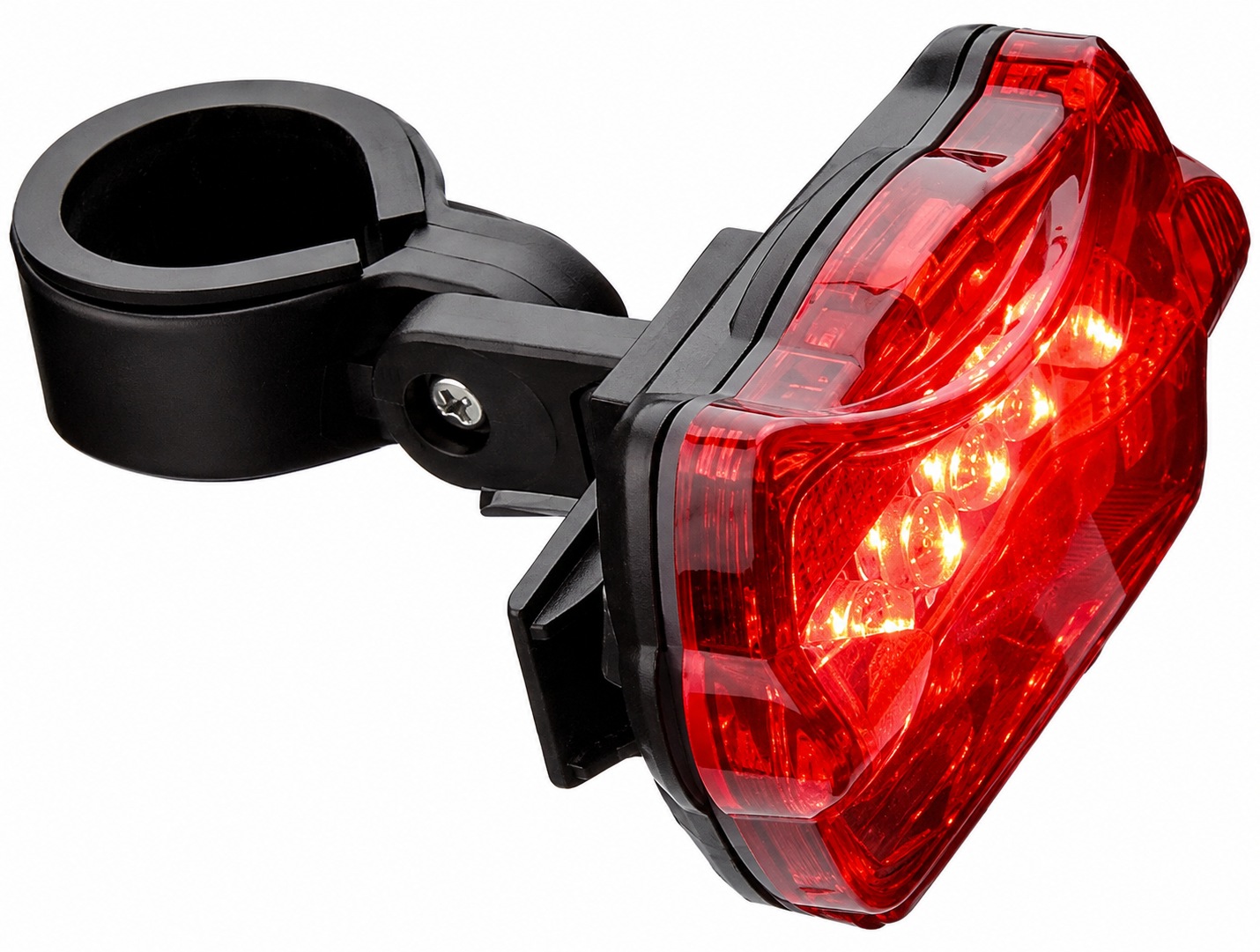

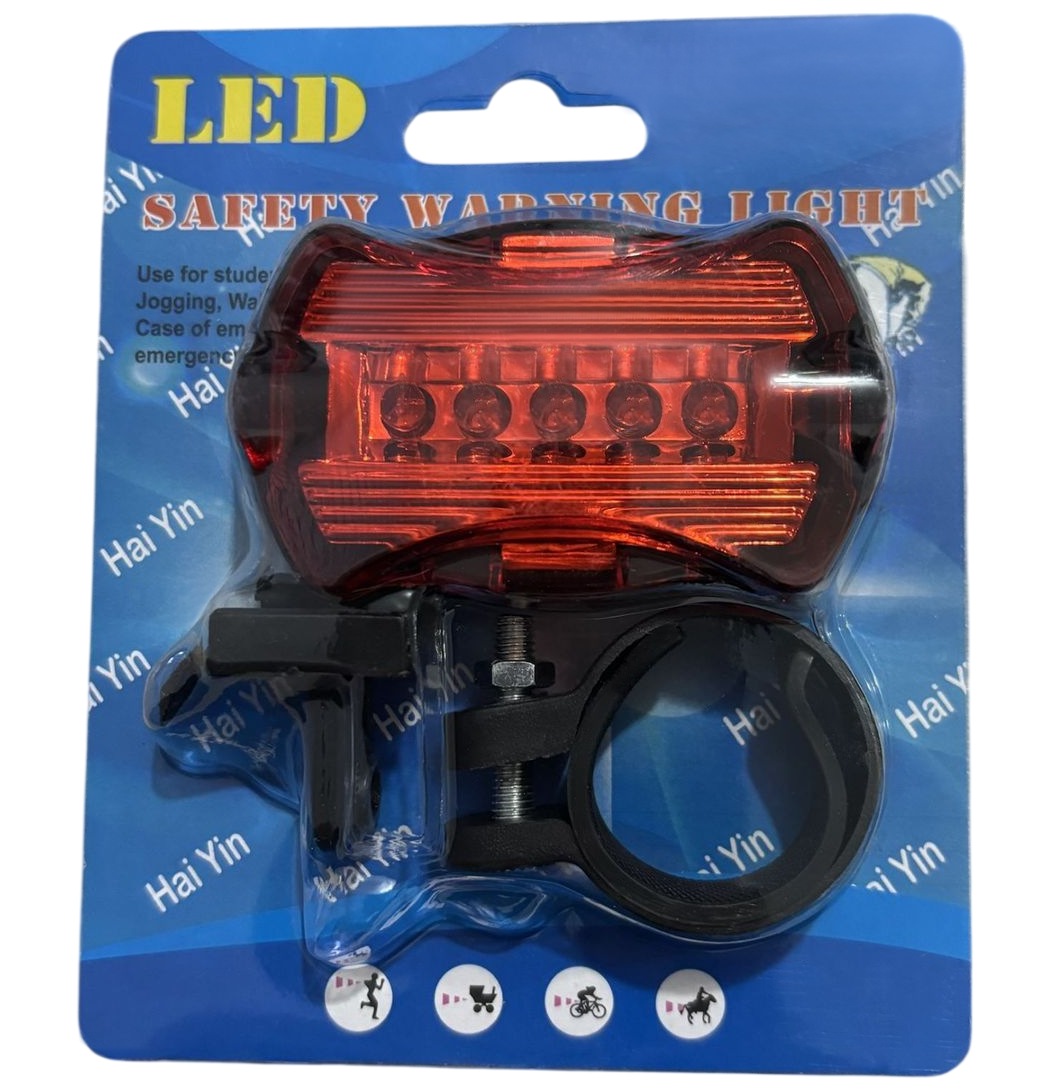

5 LED Electric Scooter or Bicycle Taillight
Super-bright 5 LED taillight for electric scooters and bikes. Seat post mounting clip. Push button power switch activates steady or flashing mode. Gasket sealed weatherproof design can be used in all riding conditions. Easy to install. This tail light has up to 100 hours of run time on two AAA batteries. (batteries not included)
Item # LIT-600		 $4.95

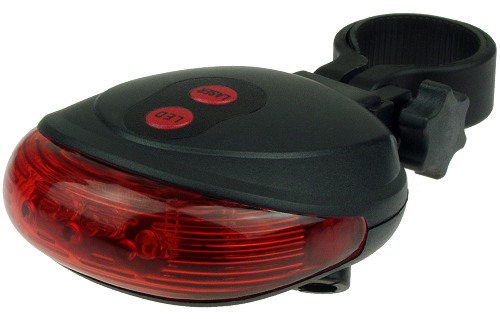

5 LED Electric Scooter or Bicycle Taillight With 2 Laser Lane Markers
Super-bright 5 LED taillight with 2 lane marking lasers for electric scooters and bikes. The lasers are very bright and easy to see. Seat post mounting clip. Push button LED power switch activates 7 modes including steady and flashing. Push button Laser power switch activates laser lane markers which can be steady or flashing. Weatherproof design. Easy to install. This tail light has up to 9 hours of run time on two AAA batteries with LED lights and laser markers on, and up to 36 hours of run time with LED lights on. (batteries not included)
Item # LIT-635

$5.95


Planet Bike® 3 LED Electric Scooter or Bicycle Taillight
Tail light includes seat post mounting clip and rear fork mounting clip for multiple mounting options. 3 Super-bright LED's. Weatherproof. Soft-touch power switch accesses flashing or steady mode for up to 200 hours of run time on two AAA batteries. (batteries included)
Item # LIT-655		 $11.95


Planet Bike® 7 LED Wide-View Electric Scooter or Bicycle Taillight
Tail light includes seat post mounting clip, rear fork mounting clip, and arm strap for multiple mounting options. 7 Super-bright LED's aimed 5 ways for over 220 degrees of visibility. Visibility up to 2000 feet. Weatherproof, lightweight and durable. Up to 100 hours of run time on two AAA batteries (batteries included).
Item # LIT-700		 $16.95


Package of 8 Super Heavy Duty AAA Batteries
Package of eight quantity super heavy duty AAA batteries. Works with all of the taillights sold above.
Item # BAT-AAAX8		 $1.49
Handlebar Grip End Lights

Handlebar End Safety Lights
Set of two black anodized aluminum handlebar end lights. 240° wide viewing angle. Each light has two super bright red LED lights inside of it with a translucent silicone lens. Press the lens once for flashing red light, twice for continuous red light, and a third time to turn the light off. Both lights can be turned on at the same time as safety lights or they can be individually turned on and off as needed for turn signals. Fits virtually all electric scooter and bike handlebars. Minimum handlebar ID that they will fit is 16mm and maximum is 23mm. The aluminum bezel unthreads from the aluminum base for easy battery replacement. Each handlebar end light uses two AG10 batteries (batteries included)
Item # LIT-101		 $5.95
