Relays > Power Relay Connectors

Power Relay Connectors

Standard Pin Power Relays Connectors

 Bosch Type Relay Wiring Connector with Harness
Five terminal wiring connector socket with harness for Bosch type relays with 1/4" wide connection tabs. Three 16 gauge wires for the relay contacts and two 18 gauge wires for the relay coil. Wires are 5" long. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Fits all standard Bosch type relays available on this page.
Item # RLY-102		 $2.49

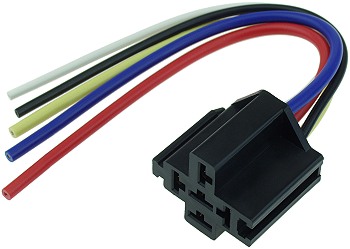

Bosch Type Relay Wiring Connector with Harness
Five terminal wiring connector socket with harness for Bosch type relays with 1/4" wide connection tabs. Three 14 gauge wires for the relay contacts and two 18 gauge wires for the relay coil. Wires are 6" long. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Fits all standard Bosch type relays available on this page.
Item # RLY-105		 $2.95

Bosch Type Relay Wiring Connector
Five terminal wiring connector socket for Bosch type relays with 1/4" wide connection tabs. Crimp or solder on brass wire terminals for 14 through 12 AWG wire. This connector fits all Bosch type relays available on this page. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Terminals are compatible with CRM-85 and CRM-87 crimping tools.
Item # RLY-106		 $1.95

Bosch Type Relay Wiring Connector with Mounting Tab
Five terminal wiring connector socket with mounting tab for Bosch type relays with 1/4" wide connection tabs. Crimp or solder on brass wire terminals for 14 through 12 AWG wire. This connector fits all Bosch type relays available on this page. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Terminals are compatible with CRM-85 and CRM-87 crimping tools.
Item # RLY-107		 $2.49

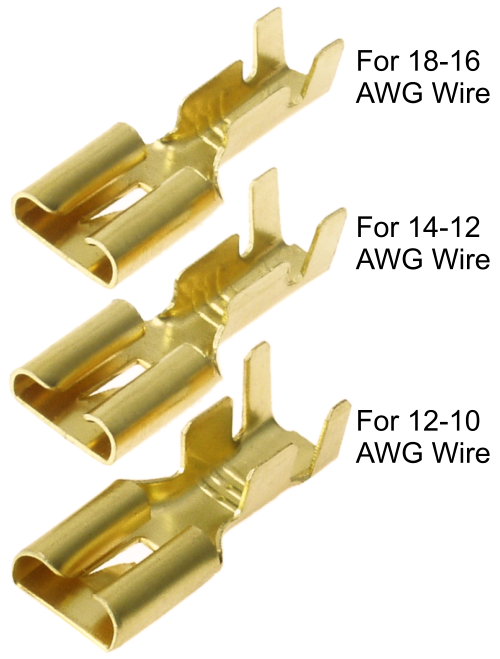

1/4" Terminals for Relay Wiring Connectors
Extra 1/4" tab terminals for relay wiring connector sockets sold above. Terminals are compatible with CRM-85 and CRM-87 crimping tools.

Item # CNX-1522 (For 18-16 Gauge Wire)

Item # CNX-1523 (For 14-12 Gauge Wire)

Item # CNX-1524 (For 12-10 Gauge Wire)

 18-16 Gauge

$0.20

14-12 Gauge

$0.20

12-10 Gauge

$0.20
Wide-Pin Power Relays Connectors

 Bosch Type Wide-Pin Relay Wiring Connector with Harness
Five terminal wiring connector socket with harness for Bosch type wide-pin relays with two or three 3/8" wide and two 1/4" wide connection tabs. Three 12 gauge wires for the relay contacts and two 18 gauge wires for the relay coil. Wires are 5" long. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Fits all wide-pin Bosch type relays available on this page.
Item # RLY-109		 $4.95


Bosch Type Wide-Pin Relay Wiring Connector
Five terminal wiring connector socket for Bosch type wide-pin relays with two or three 3/8" wide and two 1/4" wide connection tabs. Two 1/4" crimp or solder on brass terminals for 14 through 12 AWG wire and three 3/8" crimp or solder on brass terminals for 12 through 8 AWG wire. This connector fits all wide-pin relays available on this page. Interlocking feature allows two or more of these relay connectors to slide together and attach to each other. Terminals are compatible with CRM-85 and CRM-87 crimping tools.
Item # RLY-110		 $3.95


"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us


We carry power relay connectors for electric scooters, electric mopeds, electric bicycles, electric pocket bikes, electric go karts and all other types of small electric vehicles.
