Schwinn Scooter Parts > Schwinn
Stealth 1000 Electric Scooter Parts

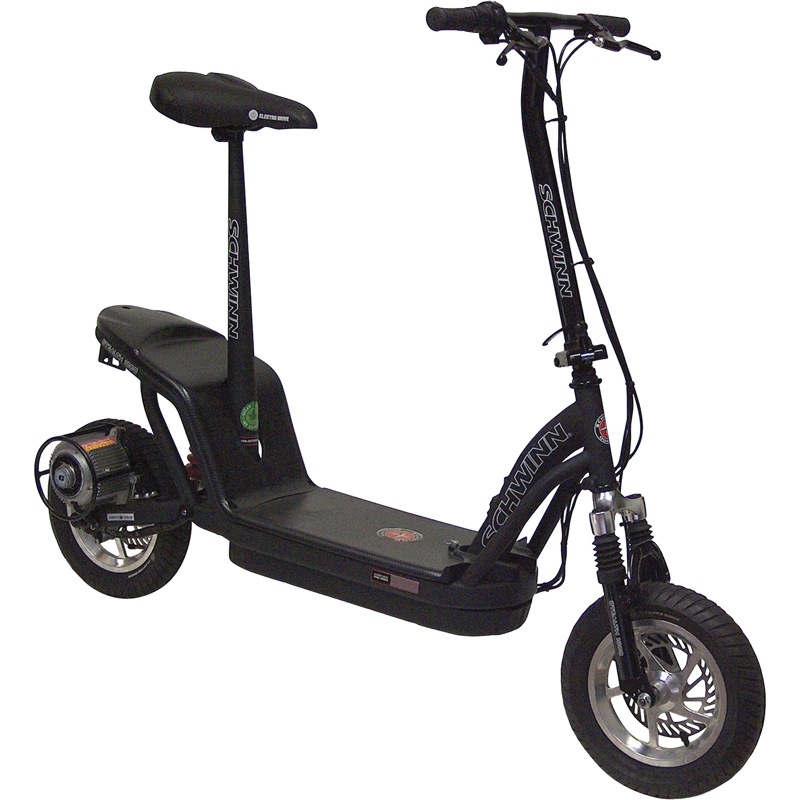

Schwinn® Stealth 1000 Electric Scooter Parts
This page is for the Schwinn® Stealth 1000 and Stealth S1000 electric scooter.
|
Battery Set for Schwinn® Stealth 1000 Electric Scooter
Set of three 12 Volt 10Ah scooter batteries for the Schwinn® Stealth 1000 electric scooter. Includes 12 month battery replacement warranty.
Warranty Details
Item # 06ST-BATTERIES |
$107.85
  |
|
|

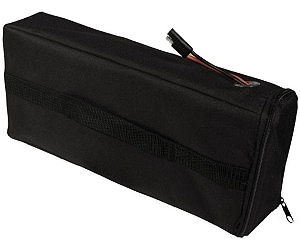

Battery Pack with Case and Wiring Harness for Schwinn® Stealth 1000 Electric
Scooter
Plug-and-play battery pack for the Schwinn® Stealth 1000 electric scooter. Includes
three 12 Volt 10Ah pre-wired batteries, heavy-duty woven nylon zippered soft case with built-in handle, and pre-installed wiring
harness. Fully assembled and ready to use. Includes 12 month battery replacement warranty.
Warranty Details
Item # BAT-3610PK |
$159.95
|
CNX-BA075
|
|
Main Wiring Harness for Schwinn® Stealth 1000 Electric Scooter
Main wiring harness with fuse for the Schwinn® Stealth 1000 electric scooter.
Compatible with charger ports that have two wires. If your scooter has a charger
port with three wires then purchase the CNX-XLR14 charger port sold below to use
with this wiring harness.
Installation Directions
Item # CNX-BA05604 |
$39.95
|
|
|
Charger Port for Schwinn® Stealth 1000 Electric Scooter
Battery charger port with two wires and two terminal connector for the Schwinn®
Stealth 1000 electric scooter.
Item # CNX-XLR14 |
$7.95
|
|
 |
Fuse for Schwinn® Stealth 1000 Electric Scooter
Fuse for the Schwinn® Stealth 1000 electric scooter. Fuse rating: 40 Amp
Item # FUS-ATO40 |
$.95
|
|
3 Wire Throttle with Female Connector for Schwinn®
Stealth 1000 Electric Scooter
3 wire twist throttle with female connector for the Schwinn® Stealth 1000 electric scooters.
Item # THR-300
If the original throttle has a male connector then item # CTE-ADAPTER2 listed below will need to be purchased along with this throttle.
|
$19.95
|
|
|
Speed Controller
for Schwinn® Stealth 1000 Electric Scooter (For 5 Wire Throttle)
Speed controller for the Schwinn® Stealth 1000 electric scooter. Compatible with
scooters that have 5 wire throttles.
Item # SPD-SD1000-5
Wiring Directions
|
$59.95
|
|
6 Wire Throttle for Schwinn® Stealth 1000 Electric Scooter
6 wire throttle for Schwinn® Stealth 1000 electric scooters.
Item # THR-600 |
$44.95
|
|
|
Motor with Gearbox and Axle for Schwinn®
Stealth 1000 Electric Scooter
Motor with attached gearbox and axle for the Schwinn® Stealth 1000 electric scooter. Includes attached power cable and connector. Does not fit all versions of the
Stealth 1000 scooter. Please see notes below for motor compatibility details.
Item # MOT-SW361000DD
Fits Schwinn® Stealth 1000 scooters with 15mm rear wheel axles. Does not replace motors
with smaller diameter rear wheel axles that were used on some versions of the
Stealth 1000
scooter.
Please remove the old motor's axle from the rim and measure to verify that it is 15mm
before ordering.
For gearbox drive scooters only. Not a replacement motor for chain drive scooters.
|
$219.95
|
|
|
Motor for Chain Drive Schwinn® Stealth 1000 Electric Scooter
Motor for the Schwinn® Stealth 1000 electric scooter. New improved design with
lightweight finned aluminum motor case and high power neodymium magnets.
Replaces and upgrades older Schwinn® Stealth 1000 motors with black steel motor
cases. For chain drive versions only.
Item # MOT-SD361000
For chain drive scooters only. Not a replacement motor for gearbox drive scooters.
|
$149.95
|
|
|

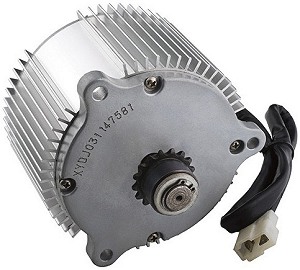

Motor with 15 Tooth Sprocket for Schwinn® Stealth 1000 Electric Scooter
Motor with 15 tooth one-way clutch freewheel sprocket for the Schwinn® Stealth 1000 electric scooter. For chain drive versions only.
Item # MOT-SD361000FW
For chain drive scooters only. Not a replacement motor for gearbox drive scooters.
|
$149.95
|
|
|
11 Tooth Motor Sprocket for Schwinn®
Stealth 1000 Electric Scooter
11 tooth fixed motor sprocket with roll pin for the Schwinn® Stealth 1000 electric scooter.
Item # SPR-2511P
Replaces 11 tooth sprockets only. Does not fit on motors with 15 tooth freewheel sprockets.
|
$11.95
|
|
|
15 Tooth Motor Sprocket for Schwinn®
Stealth 1000 Electric Scooter
15 tooth one-way clutch freewheel motor sprocket with roll pin for the Schwinn®
Stealth 1000 electric scooter.
Item # SPR-2515F
Replaces 15 tooth freewheel sprockets only. Does not fit on motors with non-freewheel sprockets.
|
$24.95
|
|
|
Motor Sprocket Roll Pin for Schwinn® Stealth 1000 Electric Scooter
Motor sprocket roll pin for Schwinn® Stealth 1000 electric scooter. Attaches sprocket onto motor shaft.
Item # HDW-3MMRP
|
$0.95
|
98 Link #25 Chains
SPR-2589F
|
|
Upgrade Rear Sprocket for Schwinn® Stealth 1000 Electric Scooter
Upgrade rear wheel sprocket with freewheel for the Schwinn® Stealth 1000 electric scooter. Directly replaces and upgrades the SPR-2590 sprocket listed below.
This upgrade sprocket has a freewheel that provides less rolling resistance when coasting for improved range and ride time plus makes it easier to push or kick the scooter forward when not using the motor.
Item # SPR-2589F |
$39.95
|
SPR-2590
|
|
Rear Sprocket for Schwinn® Stealth 1000 Electric Scooter
Original rear wheel sprocket for the Schwinn® Stealth 1000 electric scooter.
We have an upgrade rear sprocket with freewheel listed above that provides improved range and performance compared to this original sprocket.
Item # SPR-2590 |
$59.95
|
|
 |
Brake Cable End Cap for Schwinn® Stealth
1000 Electric Scooter
Crimp-on aluminum brake cable end cap for the Schwinn® Stealth 1000 electric
scooter.
Item # BRK-205 |
$.20
|
|
|
Brake Pad Set for Schwinn® Stealth 1000 Electric Scooter
Original disc brake pads for the Schwinn® Stealth 1000 electric scooter.
Item # BRK-901P
The original disc brake caliper may have replaced with an aftermarket caliper so before ordering compare the shape of these brake pads with the shape of the existing brake pads to make sure they are both the same.
|
$9.95
|
|
|
T25 Disc Brake Rotor Mounting Bolt Tool
Disc brake rotor mounting bolt tool with dual T25 ends. Made from
hardened high strength chrome-vanadium steel.
T25 Tool Head
Made from CR-V High Strength Tool Steel
Hardened To Rockwell HRC 56-58
Item # BRK-593
|
$1.00
|
CURRIE-AXLEHARDWARE
CTE-24610
|
|
Axle Nut for Schwinn® Stealth 1000 Electric Scooter
Front and rear wheel axle nut for the Schwinn® Stealth 1000 electric scooter.
Item # CTE-24610
|
$1.95
|
CTE-24612
|
|
Axle Lock Nut for Schwinn® Stealth 1000 Electric Scooter
Front and rear wheel axle lock nut for the Schwinn® Stealth 1000 electric scooter.
Item # CTE-24612
|
$1.49
|
CURRIE-SEATS
SET-185
SET-249
SET-200
CURRIE-SEATPOSTS
SPT-150
|
Steel Seat Post for Schwinn® Stealth 1000 Electric Scooter
Steel seat post with chrome finish for the Schwinn® Stealth 1000 electric scooter.
Item # SPT-150 |
$8.95
|
SPT-161
|
Aluminum Seat Post for Schwinn® Stealth 1000 Electric Scooter
Lightweight aluminum alloy seat post for the Schwinn® Stealth 1000 electric scooter.
Item # SPT-161 |
$9.95
|
SPT-300
|
Seat Tube for Schwinn® Stealth 1000 Electric Scooter
Seat tube with seat post clamp for the Schwinn® Stealth 1000 electric scooter.
Installation requires a seat tube base for this seat tube to mount into. 15-1/2"
long x 25.4mm (1") ID x 28.8mm (1-1/8") OD.
Item # SPT-300 |
$22.95
|
|
|
Front Wheel for Schwinn® Stealth 1000 Electric Scooter
Front wheel with brake rotor, tire, tube, bearings, and axle for the Schwinn® Stealth 1000 electric scooter.
Item # WHL-1053 |
$59.95
|
|
|
Rear Wheel and Motor Assembly for Schwinn®
Stealth 1000 Electric Scooter
Rear wheel assembly with motor, tire, tube, brake rotor,
bearings, and axle for the Schwinn® Stealth 1000 electric scooter. For gear drive versions only.
Item # MOT-EZRW1000 |
$289.95
|
LIT-140
|
|
5000 Lumen 7 LED Ultra-Bright Headlight for Schwinn® Stealth 1000 Electric Scooter
Super bright 5000 lumen rechargeable LED headlight set for the Schwinn® Stealth 1000 electric scooter.
Machined aluminum and glass headlight construction with premium build quality. Lighted push button switch on back of light
activates three different power modes: normal, high, and flashing. Normal power mode is bright and suitable
for most riding conditions. High power mode is super bright and suitable for higher speed riding and
off-road trails. In flashing mode this light quickly blinks on and off. Includes adjustable headband
to optionally use for wearing on your head instead of installing on the
handlebar, 5000 lumen seven LED headlight, handlebar and headband rubber mounting bands, 110-240VAC universal
battery charger, and a 9600mAh 8.4 Volt rechargeable lithium-ion battery in a black nylon carry case with Velcro mounting straps.
The battery lasts around 3 hours on low mode and 2 hours on high mode and takes 1-5 hours to fully recharge depending on how long the light was on for.
Installation Directions
Item # LIT-140 |
$29.95
|
LIT-53LED
LIT-600
REF-150
REF-155
REF-160
REF-140
BEL-300
|
|
Safety Warning Bell for Schwinn® Stealth 1000 Electric Scooter
Safety warning bell.Pleasant sounding and attention grabbing chime bell sound lets others know that you are on the road in a friendly yet effective way.
Item # BEL-300 |
$2.95
|
BEL-360
|
|
Safety Warning Bell With Compass for Schwinn® Stealth 1000 Electric Scooter
Compass bell for the Schwinn® Stealth 1000 electric scooter. Pleasant sounding and attention grabbing chime bell sound. Easy to view real magnetic compass. Easy to install design.
Item # BEL-360 |
$3.95
|
VXT-160
VXT-714
GSL-4OZ
|
|
Green Slide® Chain Lube for Schwinn® Stealth 1000 Electric Scooter
Green Slide® safe and biodegradable chain lube. The perfect lube for electric scooters and bikes. Made from highly modified tree and plant oils with all natural cling and anti-oxidation additives.
4 fluid ounce / 120 ml bottle. More Information
Item # GSL-4OZ |
$4.95
|
TIR-SL8
|
Semi-Metallic Versus Sintered Metallic
