Schwinn Scooter Parts > 24V Schwinn S-750 Chain Drive Electric Scooter Parts

24 Volt Schwinn® S-750 Chain Drive Electric Scooter Parts

Schwinn 24 Volt S-750 Electric Scooter Parts

24 Volt Schwinn S-750 Chain Drive Owners Manual

Choose carefully when buying Schwinn S-750 parts. The Schwinn S-750 electric scooter was made in 24 Volt chain drive, 24 Volt chain drive, and 36 Volt versions. The number of batteries determines its Voltage. If the scooter has 2 batteries it is a 24 Volt version, and if it has 3 batteries it is 36 Volt version. The scooter's Voltage may also be printed on the battery charger. If it is a 24 Volt version then it could have either 10Ah batteries or 12Ah batteries depending upon the scooter's build date.

24 Volt Schwinn S-750 Chain Drive Parts    24 Volt Schwinn S-750 Chain Drive Parts    36 Volt Schwinn S-750 Parts



24 Volt 10 Amp hour Battery Set for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Set of two 12 Volt 10Ah scooter batteries for the 24 Volt Schwinn® S-750 chain drive electric scooter. Includes 12 month battery replacement warranty.

Warranty Details
Item # 06S7-24VBATTERIES

The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery set before ordering. Size of each battery: 5-7/8" long x 2-1/2" wide x 4-5/16" high

$71.90



24 Volt 10 Amp hour Battery Pack with Case and Wiring Harness for Schwinn® S-750 Chain Drive Electric Scooter
Plug-and-play battery pack for the Schwinn® S-750 chain drive electric scooter. Includes two 12 Volt 10Ah pre-wired batteries, heavy-duty woven nylon zippered soft case with built-in handle, and pre-installed wiring harness. Fully assembled and ready to use. Includes 12 month battery replacement warranty.

Warranty Details
Item # BAT-2410PK

The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery set before ordering. Size of each battery: 5-7/8" long x 2-1/2" wide x 4-5/16" high
$99.95


Battery Pack Bag with Wiring Harness for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
For versions with two 12V 10Ah batteries. Heavy duty woven nylon battery pack bag with zipper and carry handle for the 24 Volt Schwinn® S-750 chain drive electric scooter. Includes wiring harness.
Item # CTE-B2410
$24.95


24 Volt 12 Amp hour Battery Set for 24 Volt Schwinn S-750 Chain Drive Electric Scooter
Set of two 12 Volt 12Ah batteries for the 24 Volt Schwinn® S-750 chain drive electric scooter. Includes 12 month battery replacement warranty.

Warranty Details
Item # BAT-12V12AHX2

The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery set before ordering. Size of each battery: 6" long x 3-7/8" wide x 3-3/4" high

$79.90



24 Volt 12 Amp hour Extended Range Battery Set for 24 Volt Schwinn S-750 Chain Drive Electric Scooter
Set of two 12 Volt 15Ah batteries for the 24 Volt Schwinn S-750 chain drive electric scooter. These 15Ah batteries provide 25% more range than the 12Ah batteries sold above. Includes 12 month battery replacement warranty.
Warranty Details
Item # BAT-12V15AHX2
The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery set before ordering. Size of each battery: 6" long x 3-7/8" wide x 3-3/4" high
$89.90


24 Volt 12 Amp hour Battery Pack with Case and Wiring Harness for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Plug-and-play battery pack for the 24 Volt Schwinn® S-750 chain drive electric scooter. Includes two 12 Volt 12Ah pre-wired batteries, heavy-duty woven nylon zippered soft case with built-in handle, and pre-installed wiring harness. Fully assembled and ready to use. Includes 12 month battery replacement warranty.

Warranty Details
Item # BAT-2412PK

The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery pack before ordering. Size of each battery: 6" long x 3-7/8" wide x 3-3/4" high
$119.95


24 Volt 15 Amp hour Extended Range Battery Pack with Case and Wiring Harness for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Plug-and-play battery pack for the 24 Volt Schwinn® S-750 chain drive electric scooter. Includes two 12 Volt 15Ah pre-wired batteries, heavy-duty woven nylon zippered soft case, and pre-installed wiring harness. Fully assembled and ready to use. Includes 12 month battery replacement warranty.
Warranty Details
Item # BAT-2415PK
The 24 Volt Schwinn S-750 has two different battery sizes. Verify that the size of your batteries matches this battery pack before ordering. Size of each battery: 6" long x 3-7/8" wide x 3-3/4" high
$129.95


24 Volt Battery Pack Wiring Harness for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Battery pack wiring harness for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CNX-BA0574
$14.95


Off-Scooter Battery Pack Charging Adapter for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Battery pack charging adapter for the 24 Volt Schwinn® S-750 chain drive electric scooter. Allows one battery pack to be recharged outside of the scooter while the other battery pack is installed in the scooter and being used.
Item # CNX-BA0755
$8.95


24 Volt Battery Charger for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Battery charger for the 24 Volt Schwinn® S-750 chain drive electric scooter. Charger rating: 24 Volt, 1.6 Amp
Item # CHR-24V1.6AXLR
$27.95


24 Volt Battery Charger for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (OEM)
OEM battery charger for the 24 Volt Schwinn® S-750 chain drive electric scooter. Charger rating: 24 Volt, 1.67 Amp
Item # CHR-C24V1.67AXLR
$49.95


24 Volt Quick-Charge Battery Charger for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Quick-charge battery charger for the 24 Volt Schwinn® S-750 chain drive electric scooter. Charger rating: 24 Volt, 4 Amp. This battery charger takes approximately half the time that it takes the stock 1.5 Amp charger to charge the battery pack.
Item # CHR-C24V4AXLR
$74.95


Main Wiring Harness for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Main wiring harness with fuse for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Installation Chainions
Item # CNX-BA05604

$39.95


Charger Port for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Battery charger port for the 24 Volt Schwinn® S-750 chain drive electric scooter. Compatible with charger ports that have two wires. If your scooter has a charger port with three wires then purchase the CNX-XLR14 charger port sold below to use with this wiring harness.
Item # CNX-XLR14

$7.95


Charger Port for Schwinn® S-750 Chain Drive Electric Scooter
Battery charger port with three wires and three terminal connector for the Schwinn® S-750 chain drive electric scooter.
Item # CNX-XLR16
$7.95


Charger Port Rivets for Schwinn® S-750 Chain Drive Electric Scooter
Set of two charger port rivets with black enamel finish for the Schwinn® S-750 chain drive electric scooter. These are blind (pop) rivets which work with all standard blind rivet setting tools.
Item # RVT-XLR2
$0.95

Fuse for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Fuse for the 24 Volt Schwinn® S-750 chain drive electric scooter. Fuse rating: 40 Amp
Item # FUS-ATO40
$.95


Power Switch for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
On/Off power switch for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # SWT-156
$5.95


Power Switch for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
On/Off power switch for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # SWT-160
$5.95


Handlebar Grip Set for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Handlebar grip set for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # GRP-55SET
$4.95


5 Wire Throttle for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
5 wire twist throttle for 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # THR-500
$32.95

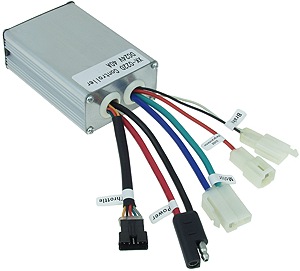

Speed Controller for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (For 5 Wire Throttles)
Speed controller for the 24 Volt Schwinn® S-750 Chain Drive Electric Scooter with 5 wire throttle connector.
Item # SPD-SD750-5
$59.95




6 Wire Throttle for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
6 wire twist throttle for the 24 Volt Schwinn® S-750 chain drive electric scooter. Three LED battery status indicator lights.
Item # THR-600

$44.95



Replacement 6 Wire Thumb Throttle for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (No Indicator Lights)
Replacement 6 wire thumb throttle for the 24 Volt Schwinn® S-750 chain drive electric scooter. This alternative thumb throttle has no battery indicator lights. Since there are no indicator light this throttle only has 3 wires however it has a 6 wire connector to replace the original 6 wire twist throttle.
Item # THR-600-3
$34.95


Speed Controller for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (For 6 Wire Throttles)
Replacement speed controller for the 24 Volt Schwinn® S-750 chain drive electric scooter with 6 wire throttle connector.
Item # SPD-SD500-6
$59.95


12-1/2x3.0 V-Tread Tire for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
12-1/2"x 3.0" V-Style tread pattern street tread tire for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # TIR-1253
$16.95


12-1/2x3.0 Tube With Bent Valve Stem for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Inner tube with bent valve stem for use with 12-1/2 x 3.0" tires sold above.
Item # TUB-12.5X3.0
$9.95


12-1/2x2.75 Knobby Tread Tire for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
12-1/2"x 2.75" knobby tread pattern all-terrain tread tire for the 24 Volt Schwinn® S-750 chain drive electric scooter. Replaces the original 12-1/2" x 3" tire.
Item # TIR-1275
$17.95


12-1/2x2.5 Inner Tube With Straight Valve Stem for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
For use with size 12-1/2 x 2.75" tires sold above.
Item # TUB-12.5x2.5
$9.95


Motor with 11 Tooth Sprocket for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Motor with 11 tooth sprocket for the 24 Volt version of the Schwinn® S-750 chain drive electric scooter.
Item # MOT-SD175
$109.95


Motor with 15 Tooth Freewheel Sprocket for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Motor with 15 tooth freewheel sprocket for the 24 Volt version of the Schwinn® S-750 chain drive electric scooter.
Item # MOT-SD175FW
$109.95


Chain with Master Link for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Heavy-Duty chain with master link for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CHN-HD2598
$17.54


Motor Sprocket for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (11 Tooth)
11 tooth motor sprocket for the Schwinn® S-750 chain drive electric scooter.
Item # SPR-2511P
Replaces 11 tooth sprockets only. Does not fit on motors with 15 tooth freewheel sprockets.
$10.95


Motor Sprocket for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
15 tooth motor sprocket with one-way clutch for the 2007 Schwinn® S-750 chain drive electric scooter.
Item # SPR-2515F
Replaces 15 tooth freewheel sprockets only. Does not fit on motors with non-freewheel sprockets.
$34.95


Rear Sprocket for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Rear wheel sprocket for 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # SPR-2590
$29.95

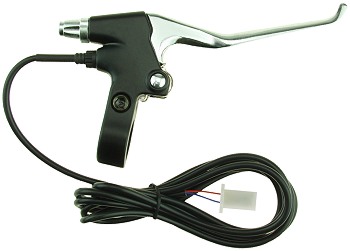

Front Brake Lever for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Front brake lever with built-in brake switch for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-24415
$17.95


Rear brake Lever for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Rear brake lever for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-24414
$17.95


Brake Lever Set for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Brake lever set for the 24 Volt Schwinn® S-750 chain drive electric scooter. Consists of one left brake lever and one right brake lever with brake switch cables terminating into a single wiring connector.
Item # LEV-CT1000
$34.95


Front Brake Cable for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Front brake cable for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CBL-150
$4.95


Rear Brake Cable for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Rear brake cable for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CBL-067
$6.95


Aftermarket Disc Brake Caliper with Brake Pads for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Aftermarket disc brake caliper with brake pads for the 24 Volt Schwinn® S-750 chain drive electric scooter. This caliper has the same fit and function as the original caliper however it uses different brake pads.
Item # CTE-28010
$17.95


Brake Pad Set for Aftermarket CTE-28010 Disc Brake Caliper for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (Does Not Fit Original Caliper)
Replacement disc brake pads for CTE-28010 disc brake caliper sold above. Does not fit the original disc brake caliper.
Item # BRK-480P
$9.95


Metallic Brake Pad Set for Aftermarket CTE-28010 Disc Brake Caliper for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (Does Not Fit Original Caliper)
Replacement disc brake pads for CTE-28010 disc brake caliper sold above. Sintered full metallic friction material for improved wear and friction properties. Does not fit the original disc brake caliper.
Semi-Metallic Versus Sintered Metallic
Item # BRK-480P-MT
$14.95


Brake Pad Spring for Aftermarket CTE-28010 Disc Brake Caliper for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter (Does Not Fit Original Caliper)
Brake pad spring for CTE-28010 disc brake caliper sold above. Does not fit the original disc brake caliper.
Item # BRK-480S
$0.50


Disc Brake Rotor for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Disc brake rotor for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-28012
$19.95


Set of Six Disc Brake Rotor Mounting Bolts for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Set of six 5mm disc brake rotor mounting bolts for the 24 Volt Schwinn® S-750 chain drive electric scooter. These bolts have pre-applied blue threadlock on them. T25 bolt head.

Item # BRK-590
$1.00


T25 Disc Brake Rotor Mounting Bolt Tool
Disc brake rotor mounting bolt tool with dual T25 ends. Made from hardened high strength chrome-vanadium steel.

T25 Tool Head

Made from CR-V High Strength Tool Steel

Hardened To Rockwell HRC 56-58

Item # BRK-593
$1.00


Wheel Bearing for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Wheel bearing for the 24 Volt Schwinn® S-750 front and rear wheels. Each wheel requires two bearings.
Size: 10mm ID, 26mm OD, 8mm wide.
Item # BRG-6000Z
$2.95


Headset Cup and Bearing Set for 24 Volt Schwinn® S-750 Electric Scooter
Front fork headset bearing set with black enamel finish for the 24 Volt Schwinn® S-750 electric scooter.
Item # BRG-134C
$11.95


Headset Bearing for 24 Volt Schwinn® S-750 Electric Scooter
Front fork headset bearing for the 24 Volt Schwinn® S-750 electric scooter.
Item # BRG-134
$2.95


Seat Post for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Steel seat post with chrome finish for 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # SPT-150
This is the upper seat post only and does not include the lower seat tube that fits into the frame. The lower seat tube has been discontinued and is no longer available.
$8.95


Seat Post for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Lightweight aluminum alloy seat post for 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # SPT-161
This is the upper seat post only and does not include the lower seat tube that fits into the frame. The lower seat tube has been discontinued and is no longer available.
$9.95


Seat for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Standard seat for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-SEAT
$24.95


Seat With Dual Rear Springs for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Seat for the 24 Volt Schwinn® S-750 chain drive electric scooter. Dual rear spring suspension. Heavy duty steel rail construction under the seat. Includes mounting hardware.
Item # SET-258
$19.95


Large Seat With Dual Rear Springs for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Premium extra-large and extra-comfortable seat for the 24 Volt Schwinn® S-750 chain drive electric scooter. Thick foam rubber padding. Dual rear spring suspension. Heavy duty steel rail construction under the seat. Includes mounting hardware. Seat measures 10-5/8" x 10-1/4".
Item # SET-251
$29.95


Folding Handlebars for Schwinn® S-750 Chain Drive Electric Scooter
Folding handlebars with mounting hardware for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-HANDLEBARS
$26.95


Handlebar Tightening Bolt And Wedge for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Handlebar tightening bolt and wedge for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # HDW-350
$10.95


Handlebar Quick-Release Mechanism for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Folding handlebar quick-release mechanism for the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # CTE-QRM
$6.95


Warning Bell With Compass for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Pleasant sounding yet attention grabbing chime bell sound. Built-in real magnetic compass. Easy to install one-piece design.
Item # BEL-360

$3.95



53 LED Headlight for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Bright 53 LED headlight. Top mounted push button switch activates three different power modes: low, medium and high. High power mode turns on all 53 LED's at once. This headlight lights up the road very well at night compared to most other LED headlights. Requires 3 AA cell batteries. (batteries not included)
Item # LIT-53LED
$11.95


5 LED Taillight for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
High output 5 LED taillight for the 24 Volt Schwinn® S-750 chain drive electric scooter. Push button switch on back side of taillight activates steady light or blinking light mode. Easy to install design. Mounts onto seat post. Has a belt clip so it can also be worn. Requires 2 AAA cell batteries. (batteries not included)
Item # LIT-600
$4.95


Front Reflector for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
White safety reflector for front handlebars of the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # REF-150
$4.95


Rear Reflector for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Rear red safety reflector for the 24 Volt Schwinn® S-750 Chain Drive Electric Scooters. Mounts onto seat post.
Item # REF-155
$4.95


Rear Reflector for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Red safety reflector for back of the 24 Volt Schwinn® S-750 chain drive electric scooter.
Item # REF-160
$5.95


2-1/2" Valve Stem Extender for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
High quality 2-1/2" long chrome-plated brass valve stem extender with cap. Extends valve stem length by two and one half inches.
Item # VXT-160
$2.79


7-1/4" Flexible Valve Stem Extender for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
7-1/4" long flexible valve stem extender with cap. For filling hard to reach valve stems. Reinforced rubber hose with solid brass hardware.
Item # VXT-714
$7.95


Green Slide® Chain Lube for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Green Slide® safe and biodegradable chain lube. The perfect lube for electric scooters and bikes. Made from highly modified tree and plant oils with all natural cling and anti-oxidation additives.
4 fluid ounce / 120 ml bottle. More Information
Item # GSL-4OZ

$4.95



Slime® Inner Tube Sealant for 24 Volt Schwinn® S-750 Chain Drive Electric Scooter
Instantly seals punctures in the tread area up to 1/8". Remains liquid, evenly coating the inside of the tube. Non-flammable, non-toxic, water soluble, easy to use. For the 24 Volt Schwinn® S-750 Chain Drive Electric Scooter use half a bottle per tire.
8 fluid ounce / 237mL bottle
Item # TIR-SL8
$7.95



"When you need Electric Scooter Parts, go to: ElectricScooterParts.com"



Store Polices | Electric Scooter Repair Help | Dealer Discounts | Feedback | About Us



We Ship Internationally


Copyright© 2002-2020 by ElectricScooterParts.com, an Electricruz Inc. company. All rights reserved.
