36 Volt Speed Controllers
36 Volts Speed Controllers for Brushed Motors
Brushed motors have two power wires.
|
36
Volt
500 Watt
|
CT-611B9 36V 500W Electric Scooter Speed Controller
Designed for 36 Volt motors up to 500 Watts. Maximum current 25 Amps. Under
Voltage protection 31 Volts. Current limiting feature helps prevent controller and
motor damage due to over-current conditions. Under voltage protection feature
helps prevent over-discharge and extends battery life. Uses standard 3-wire variable
speed hall-effect throttle.
Item # SPD-CT611B9
Wiring Directions |
$35.95
|
|
36 Volt
650 Watt
|

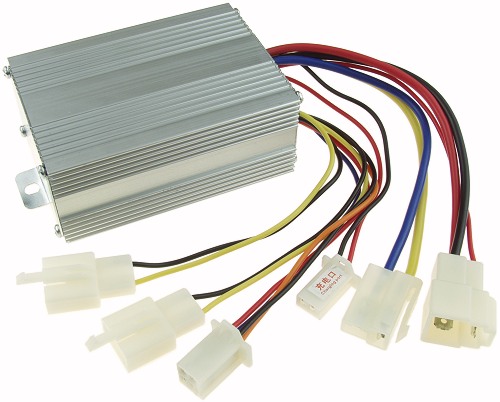

CT-312C1
36V 650W Electric Scooter Speed Controller
Designed for 36 Volt motors up to 650
Watts. Maximum current 30 Amps. Under Voltage protection
31.5 Volts. Current limiting feature helps prevent controller
and motor damage due to over-current conditions. Under
voltage protection feature helps prevent over-discharge and
extends battery life. Uses standard 3-wire variable
speed hall-effect throttle. Fits many common electric
scooter and bicycle models.
Item # SPD-CT312C1
Wiring Directions |
$39.95
|
36
Volt
800 Watt
|
36 Volt 800 Watt Electric Scooter Speed Controller
Designed for 36 Volt motors up to 800 Watts. Maximum current 32 Amps. Under
Voltage protection 31 Volts. Current limiting feature helps prevent controller and
motor damage due to over-current conditions. Under voltage protection feature
helps prevent over-discharge and extends battery life.
Item # SPD-36800B
Wiring Directions |
$49.95
|
36
Volt
800 Watt
|

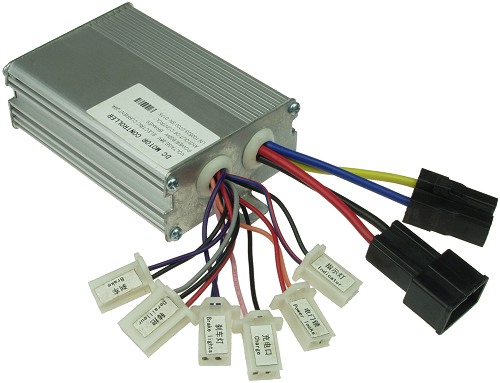

Speed Controller for EVO® 800 Electric Scooter
Speed controller for EVO® 800 electric scooter. OEM replacement plug-and-play EVO® 800
speed controller. Rated at 36 Volts 800 Watts.
Item # EVO-800CONTROLLER |
$54.95
|
36
Volt
1000 Watt
|
36V 1000W Speed Controller for EVO® 1000 Electric Scooter
Speed controller for EVO® 1000 electric scooter. For EVO® 1000 scooters that have 9 plug speed controllers. Rated at 36 Volts 1000 Watts.
Item # SPD-E1000V1 |
$59.95
|
36
Volt
1000 Watt
|
36V 1000W Speed Controller for EVO® 1000 Electric Scooter
Speed controller for EVO® 1000 electric scooter. For EVO® 1000 scooters that have 11 plug speed controllers. Rated
at 36 Volts 1000 Watts.
Item # SPD-E1000V2 |
$59.95
|
|
36
Volt
1000 Watt
|
36V 1000W Speed Controller for eZip®,
IZIP®, and Schwinn® 1000 Series Electric Scooter (3 Wire Throttle Connector)
Speed controller for eZip®, IZIP®, and Schwinn® 1000 series electric scooters. 3 wire throttle connector. Rated 36 Volts 1000 Watts.
Item # SPD-SD1000-3
Wiring Directions
|
$59.95
|
|
36
Volt
1000 Watt
|
36V 1000W Speed Controller for eZip®,
IZIP®, and Schwinn® 1000 Series Electric Scooter (5 Wire Throttle Connector)
Speed controller for eZip®, IZIP®, and Schwinn® 1000 series electric scooters. 5 wire throttle connector. Rated 36 Volts 1000 Watts.
Item # SPD-SD1000-5
Wiring Directions
|
$59.95
|
|
36
Volt
1000 Watt
|
36V 1000W Speed Controller for eZip®,
IZIP®, and Schwinn® 1000 Series Electric Scooter (6 Wire Throttle Connector)
Speed controller for eZip®, IZIP®, and Schwinn® 1000 series electric scooters.
6 wire throttle connector. Rated 36 Volts 1000 Watts.
Item # SPD-SD1000-6
Wiring Directions
|
$59.95
|
|
36 Volt
1000 Watt
|
36V 1000W
Electric Scooter Speed Controller
Designed for 36 Volt motors up to 1000 Watts. Maximum current 32 Amps. Under
Voltage protection 31 Volts. Current limiting feature helps prevent controller
and motor damage due to over-current conditions. Under voltage
protection feature helps prevent over-discharge and extends battery
life. Uses standard 3-wire variable speed hall-effect throttle.
Fits many common electric scooter and bicycle models.
Item # SPD-361000B
Wiring Directions |
$49.95
|
|
36 Volt
1000 Watt
|
CT-660B9
36V 1000W
Electric Scooter Speed Controller
Designed for 36 Volt motors up to 1000
Watts. Maximum current 32 Amps. Under Voltage protection
31.5 Volts. Current limiting feature helps prevent controller
and motor damage due to over-current conditions. Under voltage
protection feature helps prevent over-discharge and extends battery
life. Uses standard 3-wire variable speed hall-effect throttle.
Fits many common electric scooter and bicycle models.
Item # SPD-CT660B9
Wiring Directions
|
$54.95
|
36 Volts Speed Controllers for Brushless Motors
Brushless motors have three power wires and between zero to five sensor wires.
|
36 Volt
250-350 Watt
Brushless
|
36 Volt 250-350 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 36V brushless DC motors between 250W and 350W. Replaces
controllers with fewer connectors because most of the connectors are optional to
use. Under Voltage protection 30 Volts. Current limiting feature helps prevent controller damage due to
over-current conditions. Under voltage protection feature helps prevent
over-discharge and extends battery life. Compatible with standard 3-wire
variable speed hall-effect throttles.
Dimensions: 5" L x 3" W x 1-1/2" H
Item # SPD-36350BLDC
Wiring Directions |
$39.95
|
|
36/48 Volt
250-350 Watt
Brushless
|
36/48 Volt 250-350 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 36V and 48V brushless DC motors between 250W and 350W. Replaces
controllers with fewer connectors because most of the connectors are optional to
use. Automatically selects under Voltage protection of 31.5 Volts with 36 Volt
battery packs and 42 Volts with 48 Volt battery packs. Current limiting feature
helps prevent controller damage due to
over-current conditions. Under voltage protection feature helps prevent
over-discharge and extends battery life. Compatible with standard 3-wire
variable speed hall-effect throttles.
Dimensions:
5-1/8"
L x 2-3/4" W x 1-1/4" T
Item # SPD-3648350BLDC
Wiring Directions |
$39.95
|
|
36/48 Volt
500-600 Watt
Brushless
|
36/48 Volt 500-600 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 36V and 48V brushless DC motors between 500W and 600W. Replaces
controllers with fewer connectors because most of the connectors are optional to
use.
Automatically selects under Voltage protection
of 31.5 Volts with 36 Volt battery packs and 42 Volts with 48 Volt battery packs. Current limiting
feature helps prevent controller
and motor damage due to
over-current conditions. Under voltage protection feature helps prevent
over-discharge and extends life of battery pack. Compatible with standard 3-wire
variable speed hall-effect throttles.
Dimensions: 7"
L x 3-1/4" W x 2" H
Item # SPD-3648600BLDC
Wiring Directions |
$59.95
|
|
36 Volt
500-600 Watt
Brushless
|
36 Volt
500-600 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
(CW with Optional Reverse)
Designed for
36V DC brushless motors between 500W and 600W. Programmable to operate motor in clockwise and has a reverse function which is optional to use.
Replaces controllers with fewer connectors because some of the connectors are optional to
use. Under Voltage protection 31.5 Volts. Current limiting feature helps prevent controller damage due to
over-current conditions. Under voltage protection feature helps prevent
over-discharge and extends battery life. Compatible with standard 3-wire
variable speed hall-effect throttles.Dimensions: 7" L x 3-1/2" W x 2" T
Item # SPD-36600BLDC
Wiring Directions |
$59.95
|
|
36 Volt
750-800 Watt
Brushless
|
36 Volt 750-800 Watt Electric Scooter/Moped/Bike Brushless DC Motor Speed Controller
(CW or CCW with Optional Reverse)
Designed for 36V brushless DC motors between 750W and 800W. Replaces
controllers with fewer connectors because most of the connectors are optional to
use. Under Voltage protection
31.5 Volts. Current limiting feature helps prevent controller and motor damage due to
over-current conditions. Under voltage protection feature helps prevent
over-discharge and extends battery life. Compatible with standard 3-wire
variable speed hall-effect throttles. Compatible with THR-128 which has a three speed switch to control the power level of the motor (low-medium-high).
Dimensions: 6" L x 3-1/2" W x 1-3/4" H
Item # SPD-36800BLDC
Wiring Directions |
$69.95
|
Speed Controller Connectors
|
